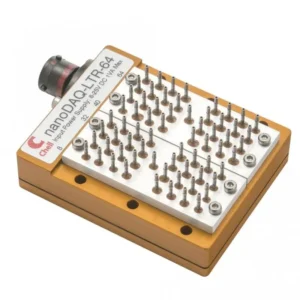

nanoDAQ-LT Series Pressure Scanners

nanoDAQ-LT pressure scanner, FIA-homologated wind tunnel testing, low-cost miniature pressure array, absolute/differential pressure measurement, aerodynamic pressure testing, 64-channel pressure scanner, 0.04% FS accuracy, IEEE 1588 PTPv2 synchronization, -20°C to 90°C thermal compensation, Ethernet/CAN output, IP67 sealed enclosure, on-vehicle pressure monitoring, embedded web server configuration, 100Mbit TCP/UDP, manifold mount pressure scanner, straight/angled tubing plates, microDAQ compatible, Chell pressure measurement, cost-effective pressure array, multi-point pressure mapping, wind tunnel instrumentation, vehicle aerodynamics testing, motorsport pressure analysis, industrial process monitoring, nanoDAQ-LT basınç tarayıcı, FIA onaylı rüzgar tüneli testi, düşük maliyetli mini basınç dizisi, mutlak/diferansiyel basınç ölçümü, aerodinamik basınç testi, 64-kanallı basınç tarayıcı, %0.04 FS hassasiyet, IEEE 1588 PTPv2 senkronizasyon, -20°C ila 90°C termal kompanzasyon, Ethernet/CAN çıkışı, IP67 korumalı muhafaza, araç üstü basınç izleme, gömülü web sunucu yapılandırma, 100Mbit TCP/UDP, manifold montajlı basınç tarayıcı, düz/açılı boru plakaları, microDAQ uyumlu, Chell basınç ölçümü, uygun maliyetli basınç dizisi, çok noktalı basınç haritalama, rüzgar tüneli enstrümantasyonu, araç aerodinamiği testi, motorsporları basınç analizi, endüstriyel proses izleme

The nanoDAQ-LT series consists of a range of low-cost miniature pressure scanners which are user configurable for absolute or differential pressure measurement as a pressure array.

They feature the same Ethernet and CAN interface as the microDAQ pressure scanner and nanoDAQ pressure scanner series – but offer reduced package size, available at a lower cost.The entire nanoDAQ-LT range has been homologated by the FIA for wind tunnel pressure and aerodynamic pressure testing.

Features

16 - 32 - 64 Channels Options

User selectable absolute or differential measurement

Up to 0.04% FS accuracy output

Complete with IEEE 1588 PTPv2 time stamping

Thermally compensated from -20°C to 90°C

Output over Ethernet (100Mbit TCP / UDP) and CAN

Rugged enclosure for on-vehicle applications. Sealed to IP67

Fully configurable over Ethernet with embedded web server

Manifold mount with optional tubing plates (straight and angled tube versions available)

Contact For Details
