microDAQ3 Series Pressure Scanners

microDAQ3 pressure scanner, high-accuracy digital pressure measurement, 0.02% FS precision, 400Hz/channel sampling, thermally compensated pressure sensor, -20°C to 90°C operation, 24-bit ADC resolution, IEEE 1588 PTPv2 synchronization, Ethernet/CAN/EtherCAT output, IENA protocol support, differential/absolute pressure measurement, 64-channel pressure array, quick-disconnect top plate, embedded web server configuration, purge/re-zero valve option, Chell advanced pressure scanning, wind tunnel instrumentation, aerospace pressure testing, engine performance monitoring, process control validation, industrial pressure mapping, test cell data acquisition, digital twin integration, predictive maintenance systems, microDAQ3 basınç tarayıcı, yüksek hassasiyetli dijital basınç ölçümü, %0.02 FS hassasiyet, 400Hz/kanal örnekleme, termal kompanzasyonlu basınç sensörü, -20°C ila 90°C çalışma aralığı, 24-bit ADC çözünürlük, IEEE 1588 PTPv2 senkronizasyon, Ethernet/CAN/EtherCAT çıkışı, IENA protokol desteği, diferansiyel/mutlak basınç ölçümü, 64-kanallı basınç dizisi, hızlı ayrılabilir üst plaka, gömülü web sunucu yapılandırması, saflaştırma/sıfırlama valf seçeneği, Chell gelişmiş basınç tarama, rüzgar tüneli enstrümantasyonu, havacılık basınç testleri, motor performans izleme, proses kontrol validasyonu, endüstriyel basınç haritalama, test hücresi veri toplama, dijital ikiz entegrasyon, kestirimci bakım sistemleri

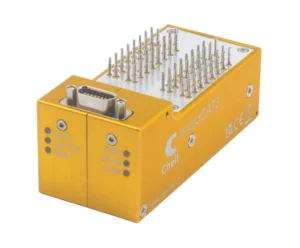

The Chell microDAQ3 is a leap forward in pressure scanning technology. The use of high accuracy digital sensors combined with an advanced processor design results in the most accurate – and most versatile pressure scanner on the market. The microDAQ3 will output differential or absolute compensated engineering unit pressure data over Ethernet, CAN, IENA, and EtherCAT at speeds up to 400Hz per channel.

The microDAQ3 makes use of high accuracy transducers which are combined with two 24-bit ADC’s per port – one for pressure and one for temperature. This precise temperature measurement allows the microDAQ3 to almost entirely compensate for thermal effects over its wide operating range.

Features

New and advanced use of digital sensor technology

Unparalleled Data Quality: up to 0.02% of full scale

16 - 32 - 64 Channels Options

High speed : 400Hz per channel

Absolute and differential measurements

Thermally compensated from -20°C to 90°C

Optional electrically driven valve for purge and re-zero

Complete with IEEE 1588 PTPv2 time stamping

24 bit ADC per channel

Available with quick disconnect top plate

Output over Ethernet (100Mbit TCP / UDP) and CAN

Fully configurable over Ethernet with embedded web server

Contact For Details
